Seamless Integration: Incorporating 3D Scanning into BIM Workflows

Building Information Modeling (BIM) has transformed the Architecture, Engineering, and Construction (AEC) industry by enabling the creation and management of intelligent, data-rich digital representations of building projects. Simultaneously, 3D scanning technology has matured to provide highly accurate methods for capturing the precise conditions of physical sites and structures. The true power of these advancements is unlocked when they are integrated, primarily through a process known as "Scan to BIM." This synergy grounds BIM models in real-world context, particularly for projects involving existing structures, leading to enhanced accuracy, reduced risks, and improved project outcomes.

The Challenge: BIM in Isolation vs. Real-World Conditions

While BIM provides immense benefits for designing new constructions often conceptualized from a "blank slate," its application to projects involving existing buildings—such as renovations, retrofits, additions, or facility management—presents a unique challenge. To be effective in these scenarios, the BIM model must accurately reflect the current, as-is state of the structure.

Traditional methods of gathering existing condition data, such as manual field measurements or relying on outdated architectural drawings, are frequently:

• Inaccurate: Original plans may not reflect subsequent modifications or construction deviations.
• Incomplete: Critical systems or structural elements may be undocumented.
• Time-Consuming: Manual surveying is a laborious and often disruptive process.

Using flawed existing condition data as the basis for a new BIM design can lead to significant design errors, unforeseen clashes between new and existing elements, costly rework during construction, and project delays.

What is "Scan to BIM"? The Core of Integration

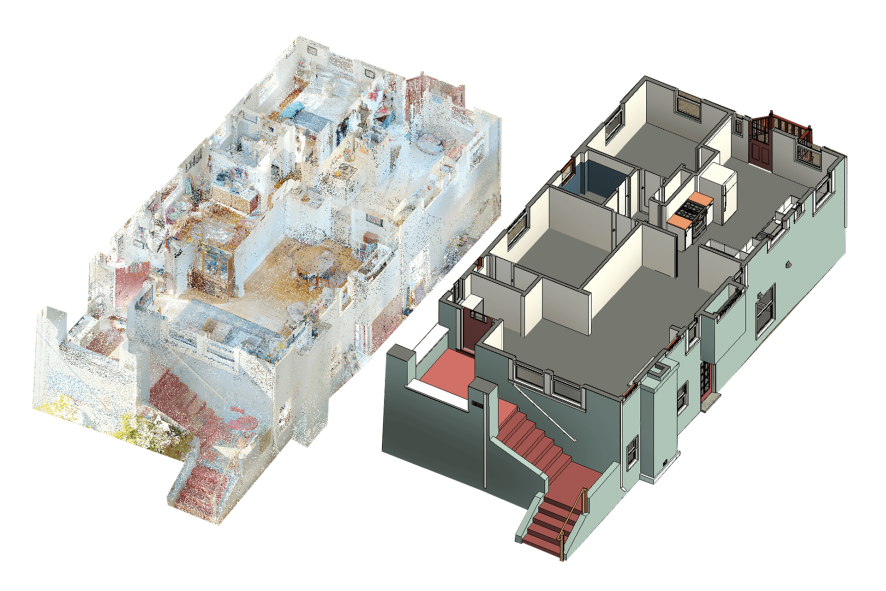

Scan to BIM is the process of using 3D laser scanning or other reality capture technologies to create a dense, accurate collection of data points (a "point cloud") representing an existing building, site, or structure. This point cloud is then used as a precise reference to create an intelligent As-Built BIM model.

The key steps in a typical Scan to BIM workflow include:

1. Planning the Scan (Project Definition):
   • Defining the scope of the scan: What areas and elements need to be captured?
   • Determining the required Level of Detail (LOD) or Level of Information Need (LOIN) for the final BIM model based on its intended use.
   • Identifying site access, potential obstructions, and any safety considerations.
2. 3D Laser Scanning (Data Acquisition):
   • On-site deployment of 3D scanning equipment, most commonly terrestrial LiDAR scanners (like those from Leica Geosystems, utilized by Data Capture Service).
   • The scanner captures millions, sometimes billions, of precise XYZ data points from the surfaces of the existing environment, forming a detailed point cloud. Multiple scan setups are often required for comprehensive coverage.
3. Point Cloud Processing and Registration:
   • The raw scan data from multiple setups is imported into specialized software.
   • This data is cleaned (removing noise or unwanted artifacts), filtered, and then "registered" – a process of accurately aligning and stitching together all the individual scans into a single, cohesive point cloud of the entire project area.
4. BIM Modeling from Point Cloud Data:
   • The registered point cloud is imported into BIM authoring software (e.g., Autodesk Revit).

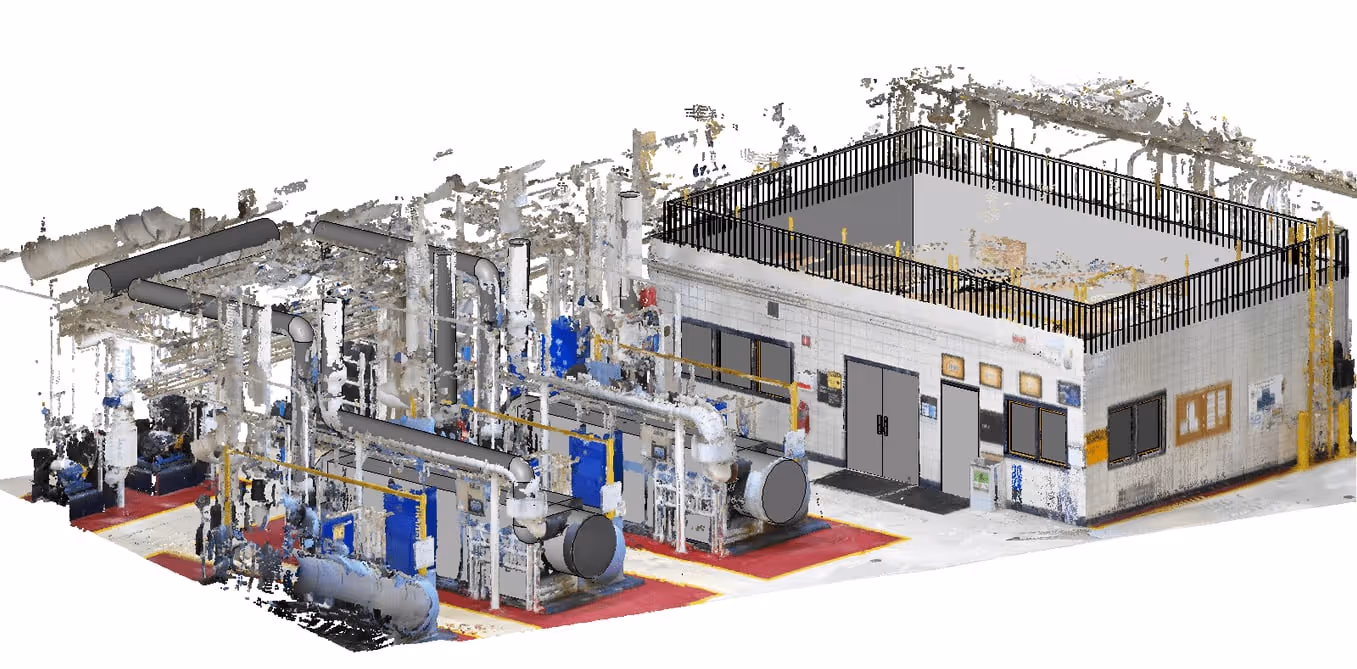

   • The point cloud serves as a highly accurate 3D template or underlay. BIM modelers then trace or model existing elements—such as walls, floors, ceilings, structural members, MEP systems, and architectural features—directly referencing the point cloud. This results in an As-Built BIM model where the geometry and location of elements accurately reflect the real-world conditions. This is an active modeling process, not a simple conversion.
5. Data Enrichment (Optional but Recommended):
   • Beyond geometry, non-graphical information (metadata) can be added to the BIM elements, such as material types, asset IDs, condition assessments, or manufacturer details, depending on project requirements.
6. Quality Assurance (QA/QC):
   • The completed As-Built BIM model is rigorously checked against the original point cloud to ensure dimensional accuracy, completeness, and adherence to the specified LOD/LOIN.

Key Applications and Benefits of Integrating 3D Scanning with BIM

The Scan to BIM process offers transformative benefits across various stages and project types:

1. Renovation, Retrofit, and Addition Projects:
   • Benefit: Provides designers with an exceptionally accurate As-Built BIM model of existing conditions, eliminating reliance on outdated or unreliable plans. This minimizes design errors, reduces the risk of unexpected discoveries during construction, and facilitates the precise integration of new designs with existing structures.
2. Construction Verification and Quality Assurance/Quality Control (QA/QC):
   • Benefit: Periodically scanning the site during construction allows teams to compare the as-built scan data of installed elements against the design BIM model. This can verify dimensional accuracy, correct placement (e.g., slab flatness, wall plumbness, MEP routing), and completeness of work, enabling early detection and correction of deviations.
3. Accurate As-Built Documentation for Project Handover:
   • Benefit: Delivers a highly accurate and intelligent BIM model representing the final constructed state of the facility. This "digital twin" foundation is invaluable for the owner/operator for ongoing facility management and future planning.
4. Enhanced Facility Management (FM):
   • Benefit: The accurate As-Built BIM model created through Scan to BIM provides the essential foundation for effective BIM for FM. It enables efficient space management, precise asset location and tracking, and streamlined maintenance planning throughout the building's operational lifecycle.
5. Proactive Clash Detection in Existing Contexts:

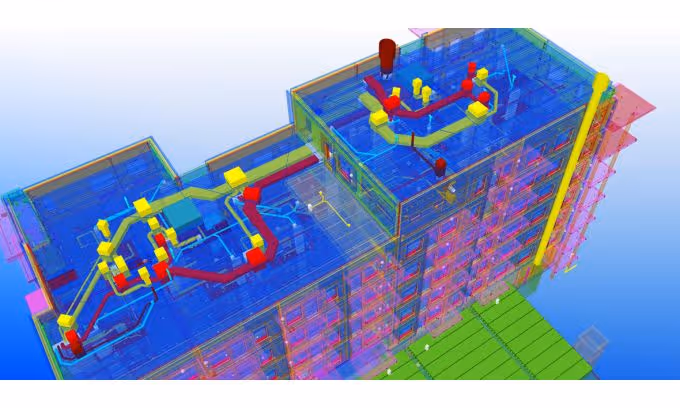

   • Benefit: Allows for robust clash detection analysis between proposed new systems and the actual existing conditions as captured in the As-Built BIM model. This prevents costly on-site clashes that would otherwise occur due to discrepancies between old plans and reality.
6. Heritage Building Preservation and Restoration:
   • Benefit: Enables the creation of highly detailed and dimensionally accurate BIM models of historically significant structures. These models are crucial for documentation, structural analysis, planning meticulous restoration work, and preserving cultural heritage.
7. Improved Project Collaboration and Reduced RFIs:
   • Benefit: When all stakeholders (architects, engineers, contractors, owners) work from a common, verified understanding of the existing conditions provided by the Scan to BIM model, miscommunications are reduced, and the number of Requests for Information (RFIs) related to site conditions typically decreases.

The Role of Data Capture Service in Scan to BIM Workflows

Data Capture Service plays a critical role in bridging the gap between the physical site and the digital BIM environment. We provide:

• Expertise in Precise 3D Scanning: Utilizing advanced LiDAR technology and professional-grade equipment to capture highly accurate and comprehensive point cloud data.
• Skilled Point Cloud Processing: Ensuring that raw scan data is meticulously registered and cleaned to form a reliable basis for modeling.
• Accurate BIM Modeling from Scan Data: Our experienced modelers create intelligent As-Built BIM models (e.g., in Revit) to the required Level of Detail (LOD), faithfully representing existing conditions.
• Deliverables Tailored to Project Needs: Providing clients with usable, accurate BIM models and related documentation that integrate seamlessly into their existing workflows.

Considerations for Successful Scan to BIM Integration

• Clearly Define Scope and LOD/LOIN: The purpose of the BIM model will dictate the necessary Level of Detail for modeled elements. This should be agreed upon at the project outset.
• Effective Data Management: Point clouds and detailed BIM models can be very large. Plan for adequate data storage, transfer, and management strategies.
• Software and Interoperability: Ensure compatibility between scanning hardware, point cloud processing software, and BIM authoring platforms.
• Specialized Expertise: Recognize that successful Scan to BIM requires skilled professionals in both 3D scanning and BIM modeling. It is not an automated process but one that demands technical proficiency and attention to detail.

Integrating 3D scanning into BIM workflows through the Scan to BIM process is no longer a niche application but a fundamental component of modern, efficient AEC project delivery. For any project involving existing structures, it provides an unmatched level of accuracy, significantly reduces risks, enhances collaboration, and delivers substantial value across the entire project lifecycle, from initial design through to long-term facility management.
