What Is As-Built Documentation? A Beginner’s Guide

In the realm of construction, renovation, and building management, the term "as-built documentation" (often shortened to "as-builts") frequently arises. For those new to the Architecture, Engineering, and Construction (AEC) industry or property ownership, understanding what as-builts are and why they are critically important is essential. This guide provides a beginner-friendly explanation of as-built documentation and its significance throughout a building's lifecycle.

Defining As-Built Documentation: Design vs. Reality

To understand as-builts, it's important first to distinguish them from initial design plans:

• "As-Designed" Plans: When a new construction or renovation project begins, architects and engineers create a set of detailed plans, drawings, specifications, and often 3D models (like BIM models). These documents represent the intended design – how the project is supposed to look and function upon completion.
• The Reality of Construction: The construction process is dynamic. Even with the best planning, deviations from the original design are common and often necessary. Changes can occur due to:
  • Unforeseen site conditions (e.g., unexpected underground utilities, soil issues).
  • Availability of specified materials or equipment.
  • Approved change orders requested by the owner or design team.
  • On-site modifications made by contractors for practical installation purposes (e.g., minor rerouting of pipes or ducts).
  • Value engineering decisions made during construction.
  • Errors or omissions in the original design.

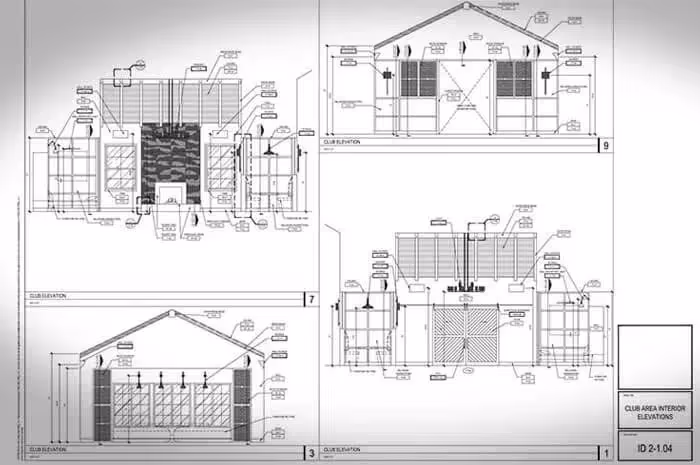

• "As-Built" Documentation Defined: As-built documentation is the revised set of drawings, models, and other records that accurately reflect the actual, final condition of the project as it was constructed. It captures all the modifications, deviations, and changes made during the construction process, providing a precise record of what was built, where it was built, and how it was built.

Essentially, as-builts bridge the gap between the original design intent and the final constructed reality.

Why is As-Built Documentation So Important?

Accurate as-built documentation is not just a formality; it's a vital asset with long-term value:

1. Essential for Facility Management and Operations:
   • Provides FM teams with accurate information for routine maintenance, troubleshooting, and repairs. Knowing the exact location of pipes, valves, electrical conduits, and equipment is crucial.
   • Aids in planning equipment replacements, system upgrades, or energy efficiency improvements.
   • Supports effective space management, tenant fit-outs, and internal reconfigurations.
2. Critical for Future Renovations, Additions, or Retrofits:
   • Serves as a reliable baseline for architects and engineers designing future modifications. This prevents them from basing new designs on inaccurate or outdated information, which can lead to costly errors, clashes, and delays.
   • Reduces the need for extensive (and often disruptive) field verification and site investigation for future projects if the as-builts are trustworthy.
3. Enhances Safety and Emergency Response:
   • Provides accurate locations of critical safety systems (fire suppression, alarms), utility shut-offs, emergency egress paths, and hazardous material locations, which is vital for first responders and building occupants.
4. Serves Legal and Contractual Purposes:
   • Acts as an official record of what was actually delivered by the contractor, which can be crucial in resolving disputes, warranty claims, or liability issues.
   • Verifies that the construction complies with contractual obligations.
5. Key Component of Project Handover to the Owner:
   • Comprehensive as-built documentation is a critical deliverable in the project closeout process, ensuring the owner has all necessary information to operate and maintain the new facility.
6. Supports Regulatory Compliance and Permitting:
   • In some jurisdictions, submission of accurate as-built drawings may be required by local authorities for occupancy permits or other regulatory approvals.

What Does As-Built Documentation Typically Include?

As-built documentation can encompass a variety of records:

• Marked-Up (Red-Line) Drawings: The traditional method where contractors mark changes directly onto a set of the original design drawings using red ink.

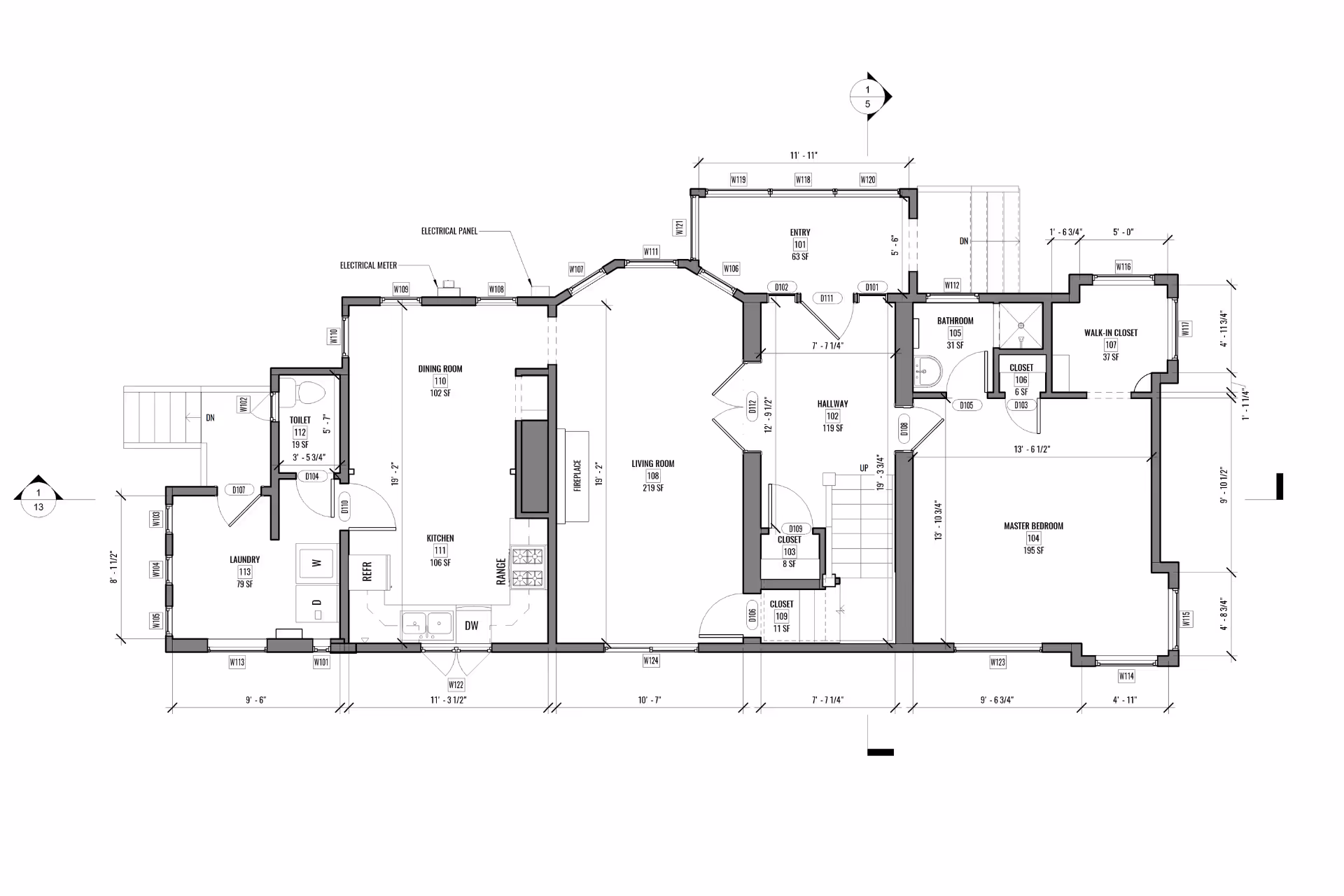

• Revised CAD Drawings: Digitally updated 2D drawings (e.g., in AutoCAD) that incorporate all the field changes.
• As-Built BIM Models: The modern and increasingly preferred approach where the intelligent 3D Building Information Model is updated to precisely reflect the final constructed state, including geometry and embedded asset information.
• Photographs and Videos: Visual documentation of construction progress, specific installations (especially those that will be concealed), and complex details.
• Specifications and Schedules: Updated lists detailing the actual materials, equipment (with model numbers, manufacturers), and finishes used in the project.
• Survey Data: Precise measurements of key building elements, site features, or utility locations, often captured by professional surveyors.
• Operation and Maintenance (O&M) Manuals: While technically separate, these are often compiled and handed over alongside as-built documentation.

Traditional vs. Modern Methods of Creating As-Builts

The method of creating as-builts significantly impacts their accuracy and utility:

• Traditional Challenges:
  • Manual red-lining of paper drawings can be inconsistent, prone to human error, incomplete, or difficult to read.
  • The accuracy depends heavily on the diligence and attentiveness of site personnel.
  • Information can be easily lost, misplaced, or deteriorate over time. Transferring these manual markups to clean digital files can also introduce errors.
• Modern Approach with 3D Scanning:
  • Enhanced Accuracy and Completeness: Technologies like 3D laser scanning (LiDAR) and advanced photogrammetry (e.g., Matterport) capture millions of precise data points representing the actual conditions with remarkable detail.
  • Efficiency for Complex Conditions: Scanning can be significantly faster and more comprehensive than manual field verification, especially for complex geometries or congested MEP spaces.
  • Versatile Deliverables: The scan data can be used to create highly accurate 2D CAD drawings, detailed point clouds for virtual inspection, and intelligent As-Built BIM models (often referred to as "Scan to As-Built" or "Scan to BIM").
  • Data Capture Service Advantage: We specialize in using state-of-the-art 3D scanning technology to create exceptionally accurate and reliable as-built documentation, ensuring you have a trustworthy record of your project.

Who is Responsible for As-Built Documentation?

Typically, the general contractor or construction manager holds the primary responsibility for compiling and submitting the final as-built documentation. However, it's a collaborative effort:

• Subcontractors are usually responsible for recording changes related to their specific trades (e.g., electrical, mechanical, plumbing) and providing this information to the general contractor.
• Architects and engineers may review the as-builts for general conformance with the design intent and any approved changes.
• Owners should clearly specify their as-built requirements in the contract documents.

As-built documentation is far more than just a set of updated drawings; it's a vital, living record of a building asset. It bridges the crucial gap between the intended design and the constructed reality. Investing in accurate and comprehensive as-builts, especially those created using modern technologies like 3D scanning, provides lasting value by supporting efficient operations, informed future planning, and effective lifecycle management of the facility.
