Proactive Problem Solving: The Power of Clash Detection in BIM Projects

In the complex world of Architecture, Engineering, and Construction (AEC), ensuring that all building systems and components fit together seamlessly is a monumental task. Historically, interferences or "clashes" between elements like pipes, ductwork, structural members, and architectural features were often discovered on-site, leading to costly delays and rework. Building Information Modeling (BIM) has revolutionized this with clash detection—a proactive process for identifying, inspecting, and reporting interferences in a digital model before construction even begins. Accurate data, especially as-built information for existing structures, is foundational to effective clash detection.

The High Cost of On-Site Clashes

Discovering clashes during construction can have severe financial and operational consequences:

• Expensive Rework: Modifying or reinstalling components that clash is significantly more expensive on-site than adjusting a digital model. This includes labor, materials, and equipment costs.
• Schedule Delays: Stopping work to resolve clashes can disrupt project timelines, leading to cascading delays for subsequent trades and potentially incurring penalties.
• Budget Overruns: The cumulative effect of rework and delays inevitably leads to increased project costs.
• Safety Hazards: Unexpected modifications or crowded installations due to unresolved clashes can create unsafe working conditions.
• Increased RFIs and Change Orders: Clashes generate numerous Requests for Information (RFIs) and change orders, adding administrative burden and potential for disputes.
• Compromised Design Intent: On-site "fixes" may not align with the original design intent or performance requirements.

For instance, a scenario where a newly installed HVAC duct cannot pass through a designated opening because a structural beam is in the way, or where electrical conduits conflict with plumbing lines, exemplifies a common on-site clash that meticulous digital coordination could prevent.

How Clash Detection Works in a BIM Environment

‍

Clash detection leverages the data-rich environment of BIM to automate the identification of conflicts:

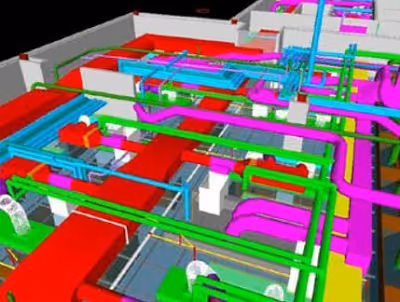

1. Federated Models: The process typically begins by aggregating discipline-specific models (e.g., architectural, structural, mechanical, electrical, plumbing, fire protection) into a single, federated or coordination model. Each discipline creates its model, and these are then combined.
2. Automated Software Analysis: Specialized software, such as Autodesk Navisworks or Solibri Model Checker, is used to analyze the federated model. Users can define rules and tolerances to identify different types of clashes.
3. Types of Clashes Identified:
   • Hard Clash (Geometric Clash): This occurs when two or more objects physically occupy the same space or intersect. For example, a pipe passing directly through a structural column.
   • Soft Clash (Clearance Clash): This refers to situations where objects do not have sufficient spatial or geometric tolerance between them for installation, maintenance access, safety requirements, or code compliance. For instance, inadequate clearance around a piece of equipment for servicing.
   • 4D/Workflow Clash (Schedule Clash): This more advanced type of clash considers the construction schedule. It identifies conflicts related to the timing and sequencing of installations, such as when one component is scheduled to be installed before another component that provides necessary support or access.

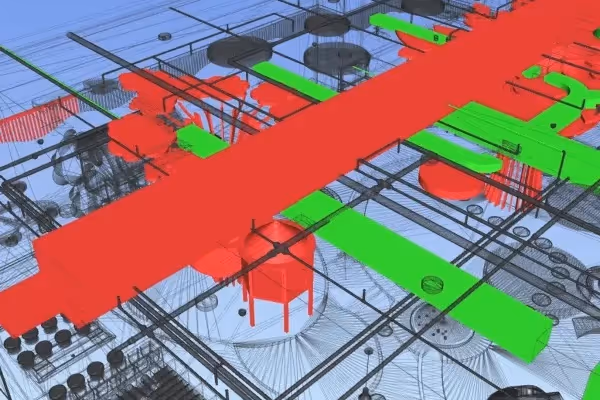

4. Clash Reports: The software generates detailed clash reports that list identified interferences, including their location within the model, the elements involved, and often a visual snapshot of the clash.
5. Resolution Process: The identified clashes are then reviewed by the project team (BIM managers, designers, engineers, and contractors) in collaborative meetings. Responsibilities are assigned for resolving each clash, which typically involves design modifications or rerouting of systems within the BIM models. The updated models are then re-checked until clashes are resolved to an acceptable level.

Key Benefits of Implementing Clash Detection

Integrating clash detection into the BIM workflow offers substantial advantages:

• Significant Cost Savings: By identifying and resolving conflicts in the design phase, the need for expensive on-site rework, material waste, and associated labor costs is drastically reduced.
• Improved Project Schedules: Minimizing on-site problem-solving helps keep construction on track, avoiding costly delays.
• Enhanced Design Quality and Constructability: The process forces a higher level of coordination, resulting in more refined, accurate, and constructible designs.
• Better Interdisciplinary Collaboration: Clash detection meetings foster proactive communication and problem-solving among architects, engineers, and contractors.
• Increased Safety: Designing out clashes can prevent awkward or hazardous installations, contributing to a safer construction site.
• Reduced RFIs and Change Orders: Proactive issue resolution means fewer unforeseen problems arise on site, leading to a smoother construction process.

The Crucial Role of As-Built Data in Clash Detection

While clash detection is powerful for new designs, its effectiveness in renovation, retrofit, or addition projects hinges on accurate information about existing conditions. Design models for new work often rely on outdated or incomplete as-built drawings of the existing structure, leading to clashes between new designs and unforeseen existing elements.

This is where Scan to BIM services become invaluable. Data Capture Service utilizes advanced 3D laser scanning technology to capture precise as-built conditions of existing structures, including complex MEP systems, structural elements, and architectural features. This data is then converted into an accurate As-Built BIM model.

By integrating this precise As-Built BIM model into the federated model, AEC professionals can perform clash detection not only between new design elements but critically, between new designs and the actual existing conditions. This significantly reduces the risk of discovering, for example, that a new pipe route conflicts with an undocumented existing beam during construction.

Best Practices for Effective Clash Detection

To maximize the benefits of clash detection:

• Start Early and Iterate: Implement clash detection continuously throughout the design process, not just as a final check before construction.
• Define Clear Rules and Tolerances: Customize clash detection tests based on project-specific requirements, trades involved, and acceptable construction tolerances.
• Establish a Collaborative Workflow: Define roles, responsibilities, and communication protocols for clash review, assignment, and resolution.
• Prioritize Clashes: Focus on resolving high-priority clashes (e.g., major structural or system conflicts) first.
• Regular Reporting and Tracking: Maintain detailed records of identified clashes, resolution status, and design changes.
• Leverage Accurate As-Built Data: For projects involving existing structures, incorporate precise "Scan to BIM" models to ensure comprehensive clash analysis.

Clash detection is an indispensable component of modern BIM-driven projects. It embodies a shift from reactive problem-solving on site to proactive risk management in the digital realm, ultimately contributing to more efficient, cost-effective, and higher-quality construction outcomes. Data Capture Service is your partner in providing the foundational, accurate as-built data essential for truly effective clash detection in any project involving existing conditions.
