Precision and Innovation: How 3D Scanning Drives Manufacturing & Product Design

‍

In the demanding landscape of modern manufacturing and product design, speed, precision, cost-efficiency, and continuous innovation are paramount. Companies are constantly seeking technologies that can streamline workflows, enhance quality, and provide a competitive edge. 3D scanning has emerged as a pivotal technology that addresses these needs, transforming how products are conceived, developed, manufactured, and inspected. This page explores the key applications and significant benefits of 3D scanning throughout the comprehensive product lifecycle.

Core Principles of 3D Scanning Relevant to Manufacturing

3D scanning encompasses various technologies that capture the three-dimensional geometry of physical objects and convert it into digital data, typically a "point cloud" or a mesh. For manufacturing and product design, the emphasis is often on:

• High Accuracy and Resolution: Capturing precise measurements and fine details is critical. Technologies like structured light scanners are often used for smaller, intricate parts requiring high detail, while laser scanners (including arm-based and terrestrial LiDAR) are employed for a range of part sizes and even entire factory layouts.
• Non-Contact Measurement: The ability to measure without physical contact is crucial for delicate, flexible, or complex-shaped parts.
• Rapid Data Acquisition: Quickly capturing large amounts of data accelerates various stages of design and production.

Key Applications of 3D Scanning in Product Design & Development

3D scanning provides powerful tools that enhance creativity and efficiency from the earliest stages of product development:

1. Reverse Engineering:
   • Concept: This involves digitally capturing the geometry of an existing physical part to create a digital design (CAD) model. This is particularly valuable when original design blueprints are unavailable, for analyzing competitor products, or for recreating legacy parts.
   • Process: The physical part is scanned to generate a point cloud or mesh. This digital data is then processed and used as a reference to build a parametric CAD model, which can be subsequently modified or used for new manufacturing.
   • Benefits: Enables the remanufacture or modification of obsolete or legacy parts, facilitates the analysis and improvement of existing designs, allows for the creation of custom-fit components for existing assemblies, and provides a method to document handmade prototypes or artisanal products digitally.
2. Prototyping and Iterative Design:
   • Concept: 3D scanning allows designers to quickly digitize physical prototypes, such as clay models, hand-sculpted forms, or early-stage functional prototypes. This digital version can then be refined in CAD software.
   • Benefits: Significantly accelerates design cycles by bridging the gap between physical modeling and digital refinement. It allows for rapid comparison between different prototype iterations, facilitates easier modification based on real-world interactions, and aids in testing ergonomic designs by capturing and analyzing physical mock-ups.
3. Customization and Bespoke Product Design:
   • Concept: Scanning organic forms, such as human body parts (for medical implants, custom orthotics, or tailored apparel) or existing objects that require perfect interfacing (e.g., custom automotive aftermarket parts, specialized tooling), allows for the creation of truly bespoke products.
   • Benefits: Leads to improved product performance through perfect fit, enhanced user comfort and ergonomics, enables mass customization strategies, and opens new markets for personalized goods.

Key Applications of 3D Scanning in Manufacturing Processes

Once a design is finalized, 3D scanning continues to add value throughout the production and operational phases:

1. Quality Control and Inspection (Metrology):
   • Concept: This is one of the most significant applications. A manufactured part is 3D scanned, and the resulting digital data is compared against its original CAD design model or a "golden part" (a perfectly manufactured reference part).
   • Process: After scanning the manufactured component, the scan data is aligned with the nominal CAD model. Specialized software then performs a deviation analysis, often generating color maps that visually highlight where the part deviates from its intended specifications and by how much.
   • Benefits: Ensures parts consistently meet design specifications and tight manufacturing tolerances, enables early identification of production defects or process drifts, reduces material waste and scrap rates, improves overall product quality, and generates comprehensive digital inspection reports for traceability and compliance.
2. Tooling, Mold, and Die Design and Verification:
   • Concept: 3D scanning can be used to digitize existing tools, molds, jigs, or dies to verify their condition, check for wear and tear, confirm accuracy after manufacturing, or create digital archives.
   • Benefits: Helps extend the life of tooling by identifying wear before it causes part defects, ensures the accuracy of newly manufactured molds and dies, speeds up repair or modification processes by providing accurate digital models, and facilitates the recreation of damaged or lost tooling.
3. As-Built Documentation of Manufacturing Plants and Production Lines:
   • Concept: Utilizing long-range 3D laser scanners (terrestrial LiDAR), entire factory floors, complex machinery layouts, intricate piping and electrical systems, and overall plant infrastructure can be accurately documented in 3D. Data Capture Service has significant expertise in this area.
   • Benefits: Creates a precise "digital twin" of the manufacturing facility, which facilitates plant layout optimization, efficient planning for new equipment installation or production line retooling, proactive clash detection for proposed changes, virtual walkthroughs for maintenance planning and safety training, and improved facility management over the plant's lifecycle.
4. Virtual Assembly and Interference Checks:
   • Concept: Individual components of an assembly can be 3D scanned (or their design models used). These digital components are then virtually assembled in software to check for fit, alignment, and potential interference issues before any physical assembly begins.
   • Benefits: Reduces costly physical assembly errors and rework, saves time in the assembly process, helps identify design flaws that could lead to mismatched parts, and ensures smoother production flow.

Benefits Across the Manufacturing Lifecycle

The integration of 3D scanning yields substantial advantages throughout all stages:

• Accelerated Time-to-Market: By speeding up design iterations, prototyping, tooling production, and inspection cycles.
• Improved Product Quality and Consistency: Achieved through higher precision in design, more accurate manufacturing, and thorough defect detection.
• Reduced Costs: Results from minimized rework, less material waste due to fewer defects, optimized manufacturing processes, and faster problem resolution.
• Enhanced Innovation and Flexibility: Provides the ability to easily work with complex shapes, effectively reverse engineer existing products, and efficiently develop customized solutions.
• Better Data Management and Collaboration: Creates comprehensive digital records for designs, inspections, tooling, and plant layouts, facilitating better communication and data sharing among teams.

Choosing the Right 3D Scanning Technology for Manufacturing

The optimal 3D scanning technology depends on the specific application within manufacturing:

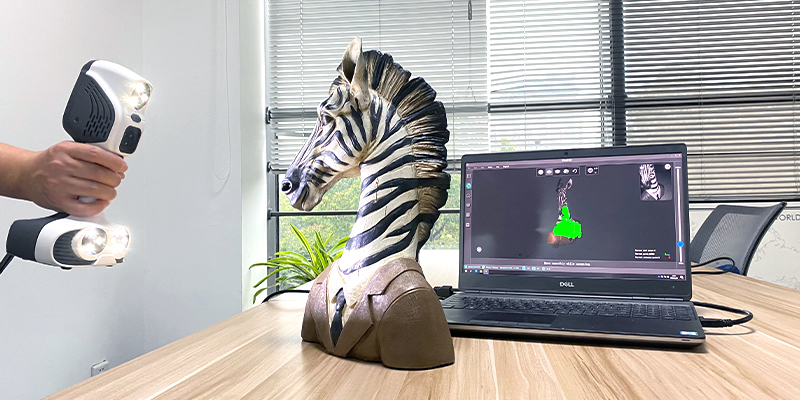

• Structured Light Scanners (Blue/White Light): Often preferred for high-accuracy, high-resolution scanning of small to medium-sized parts where fine detail is critical (e.g., turbine blades, intricate molded parts).

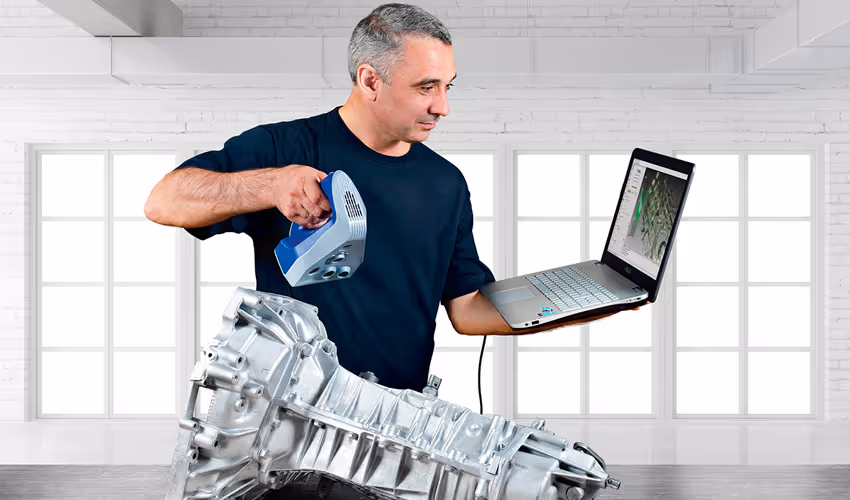

• Laser Scanners (Handheld, Arm-Based, or Line Scanners): Offer versatility for a range of part sizes and can provide a good balance of accuracy, speed, and ease of use for various inspection and reverse engineering tasks.
• Coordinate Measuring Machines (CMMs) with Scanning Probes: Represent the pinnacle of precision for metrology-grade inspection of critical components where the highest level of accuracy is non-negotiable.
• Terrestrial LiDAR Scanners: Best suited for large-scale scanning applications, such as capturing entire factory layouts, large machinery, or extensive piping systems for as-built documentation and plant design.

The choice will be influenced by factors like the object's size and complexity, the required level of accuracy and resolution, the material properties of the object, and the specific goals of the scanning project.

Data Capture Service: Supporting Manufacturing and Industrial Needs

Data Capture Service understands the precision and efficiency demands of the manufacturing and industrial sectors. We leverage advanced 3D scanning technologies, including high-accuracy LiDAR systems, to provide services such as:

• Precise as-built documentation of manufacturing facilities and production lines.
• Data capture for creating digital twins of industrial assets.
• Support for reverse engineering projects by providing accurate scan data.

We deliver high-quality, actionable data in formats compatible with industry-standard CAD and BIM software, enabling our clients to integrate this information seamlessly into their design, manufacturing, and operational workflows.

3D scanning is no longer a niche technology but an indispensable tool driving the future of manufacturing and product design. Its ability to rapidly and accurately translate the physical world into actionable digital data empowers businesses to enhance precision, boost efficiency, foster innovation, and maintain a competitive edge in a rapidly evolving global market. Its applications span the entire product lifecycle, delivering tangible value from the initial concept sketch to the final manufactured part and the operational environment it's created in.
